Downloads

Processor, Chipset and Memory

Processor    Intel® i5-6500 – 6th Generation, 4 Cores / 8 Threads (8 Mb Cache L3) 3.4 – 4 GHz, 64 bits. TDP 65W
Intel® VPRO
Chipset    Intel® Q170 – Intel® VPRO
RAM Memory    1x 8GB DDR4 2133 MHz, Non-ECC, Un-buffered
RAM Supported Memory    Up to 64 GB DDR4 2133 MHz
RAM slots    4x DIMM (3x free)

Storage

Storage    1x SATA  6 Gb/s  3.5” 500 Gb  HDD, 1x SATA 5.25” DVD +/-RW
Internal units (Tool-less)    1x internal 2.5”, 1x internal 3.5”, 1x internal 3.5” / 2.5”
External units (Tool-less)    2x external 5.25’’, 1x external 3.5’’
Disk Controller    Intel Q170 chipset
SATA Ports    6x internal SATA 6 Gb/s

System Specifications

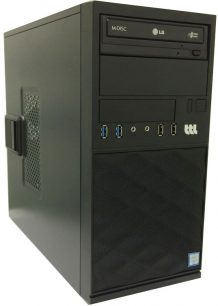

Chassis    Mini Tower.Tool-less. Quick Release Side Panel. Tool-less PCIe Expansion Slots. 35.7 x 17 x 39 cm (Height x Width x Depth)
Integrated Graphics Card    Intel® HD Graphics 530  350Mhz – 1.15 Ghz. Up to 1,7 Gb RAM DVMT. Simultaneous Triple Display Technology
Expansion Slots    2x PCI Express 3.0/2.0 x16 (1x wired x4), 1x PCI Express 3.0/2.0 x1, 1x PCI
Audio    Realtek® ALC887 7.1 Channel HD Audio
LAN    1x Integrated Intel ® I219LM Gigabit EthernetLAN (10/100/1000 Mb/s), Intel® VPRO, PXE 2.1 –  WOL
Front and Rear Connectors      1x DisplayPort 1.2  (up to 4.096 x 2.304 @ 60 Hz), 1x HDMI 1.4  (up to 4.096 x 2.160 @ 24 Hz / 2.560 x 1.600 @ 60 Hz)
1x DVI-D  (up to 1.920 x 1.200 @ 60 Hz), 1x VGA DSub-15  (up to 1.920 x 1.200 @ 60 Hz), 1 x RJ-45 Gigabit Ethernet Red
3x Rear Audio Jacks, 2x Frontal Audio Jacks
2x PS/2
8x USB 3.0 (6x at rear +  2x at front) with Power Share
2x USB 2.0 at front

Supported Technologies

• Intel® VPRO
• Intel® Virtualization Technology (Intel® VT-x & VT-d)
• Intel® Hyper-Threading
• UEFI BIOS (Updatable)
• Intel® Turbo Boost 2.0
• Enhanced Intel® SpeedStep
• Thermal Monitoring
• ACPI
• USB Boot
Power Supply and Noise Level    ATX 500W 80 Plus® Bronze, 90-265V, 47-63Hz, Active PFC, < 35 dB
Security    Padlock Loop, Kensington Slot.  TPM
Label    Customized according with customer specifications (S/N, MAC, Purchase order, P/N, etc), Optional Laser Marking with customer specifications
Manufacturing Services    Customer Master O.S. Cloning – PC and BIOS customization –  Customized Power Cord
Warranty    3 years Off-site – Original Parts – Own Technical Support Partner Net
Optional  5 years warrantyO.S. Compatibility    Microsoft Windows 7 / 8 / 8.1 / 10, Linux (RHEL 6 / 7, CentOS, Ubuntu, etc )

Certifications

EPEAT Gold
Energy Star 6





The design features of the product may vary due to configuration and / or interested implementations upon request.
